Applications :

• The cables are designed for making connection across the track at the ballast level to the running rails for the signalling track circuits. They are characterized by being high resistant to mechanical damage, fire and contaminants such as oil and water.

Standards :

• SE895
• UNE 21027



Construction :

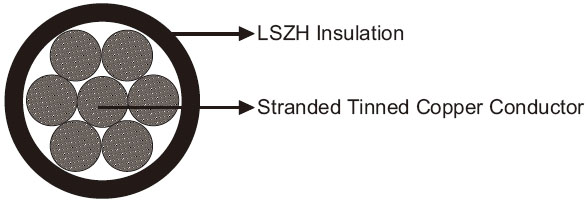

• Conductors : Stranded tinned copper conductors to IEC 60228 class 2 or 5.
• Insulation : LSZH Insulation.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	4.0
  Maximum DC Conductor Resistance	Ω/km	4.7
  Voltage Rating	KV	0.3/0.5

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5×OD.
• Temperature Range : -25°C to +85°C(during operation) ; -10°C to +70°C (during installation).

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	No. & Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RF895-ES05Z-U-300/500V-1G4	1×4.0	7/0.85	0.8	6.8	85

  U is changed to K if the stranding class is changed from class 2 to class 5.



Mineral Oil Resistant		Low Toxicity



Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
